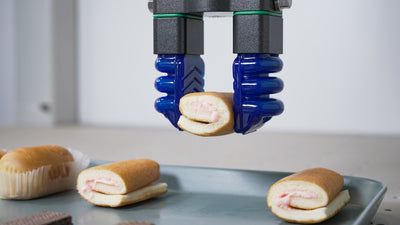

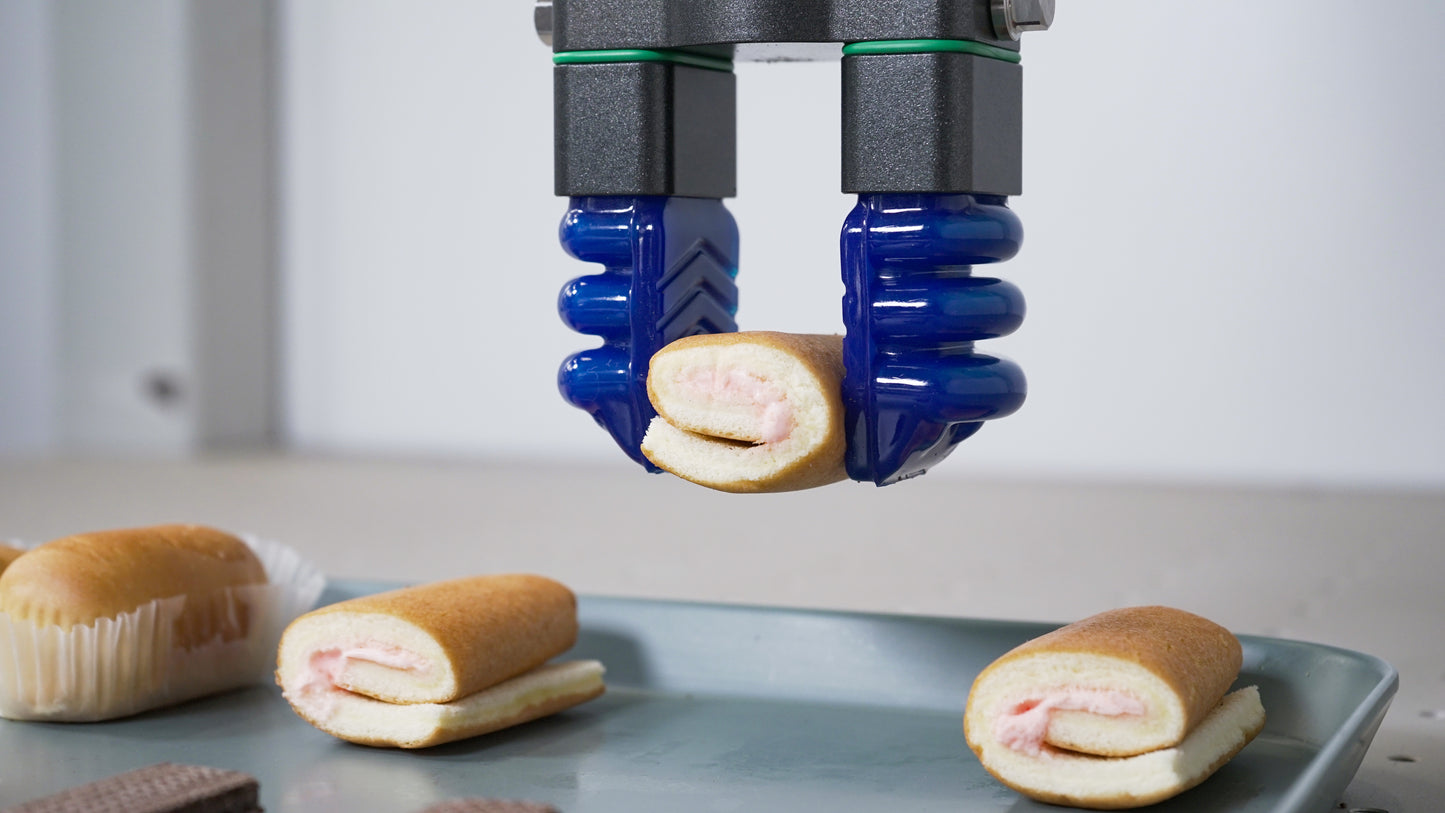

SFG-S Food Grade Soft Robotic Gripper
SFG-S Food-Grade Soft Robotic Gripper is made of food-grade Silicone, which has passed the double inspection certification of FDA in the United States and JFSL370 in Japan. The surface of the fixture connector is coated with PTFE, which makes the fixture have corrosion resistance, good hydrophobicity, non-adhesion, and wear resistance. The gaps on the surface of the fixture are all sealed with food-grade fluorine rubber rings to prevent food residues from invading the interior of the fixture. The fixture adopts a sanitary design to prevent liquid accumulation after cleaning.
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
-
Weight/g 560
-
Pushing force on fingertip/N 11
-
Maximum load/g 1.2
-
Maximum Operating frequency(cpm) <300
-
Lifespan >3,000,000
-
Working pressure/kPa -60~100
-

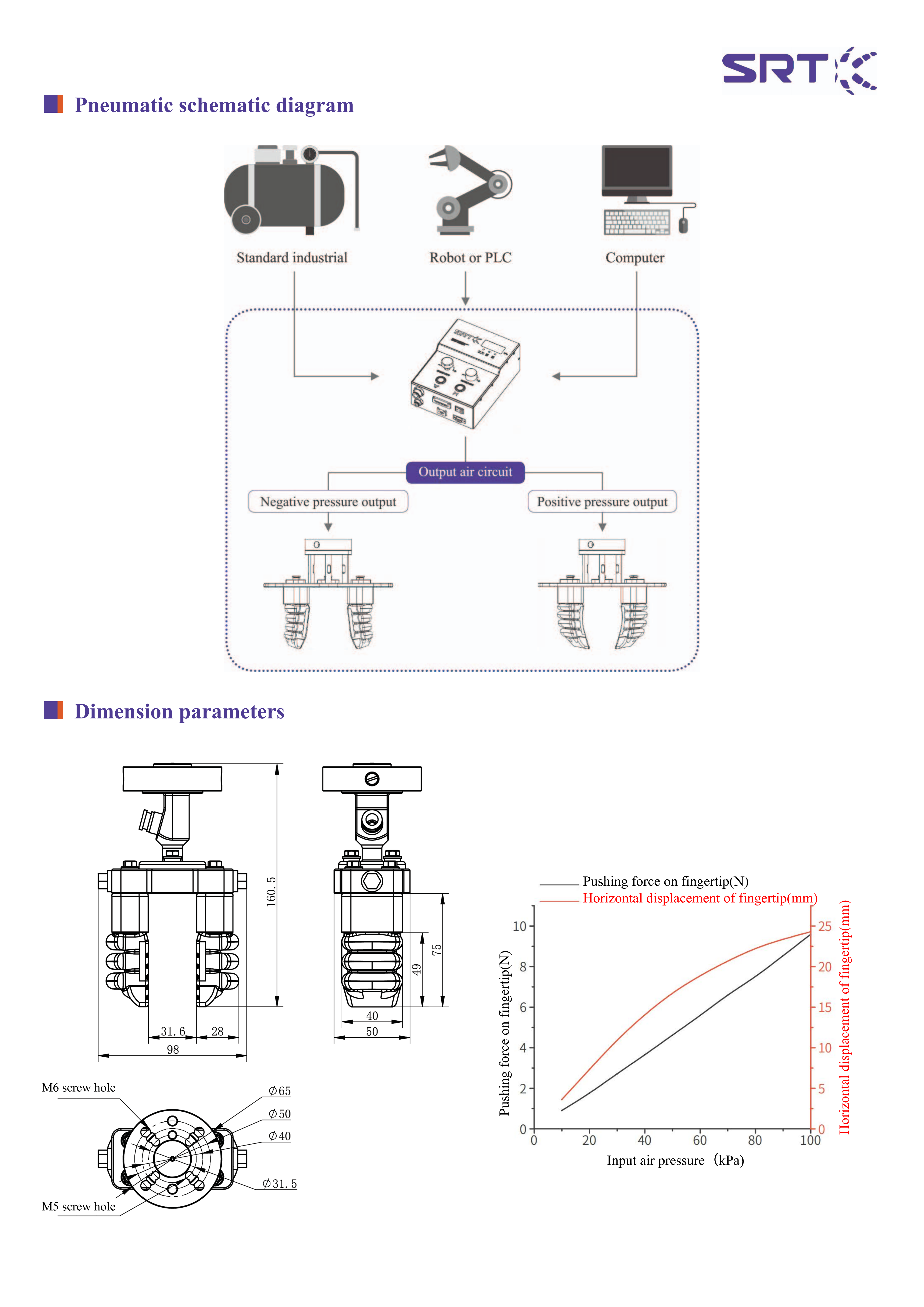

Driving type Specific pneumatic control module
-
Grasping object size/mm 0-65 It is recommended to grab irregular objects such as cuboids or cylinders

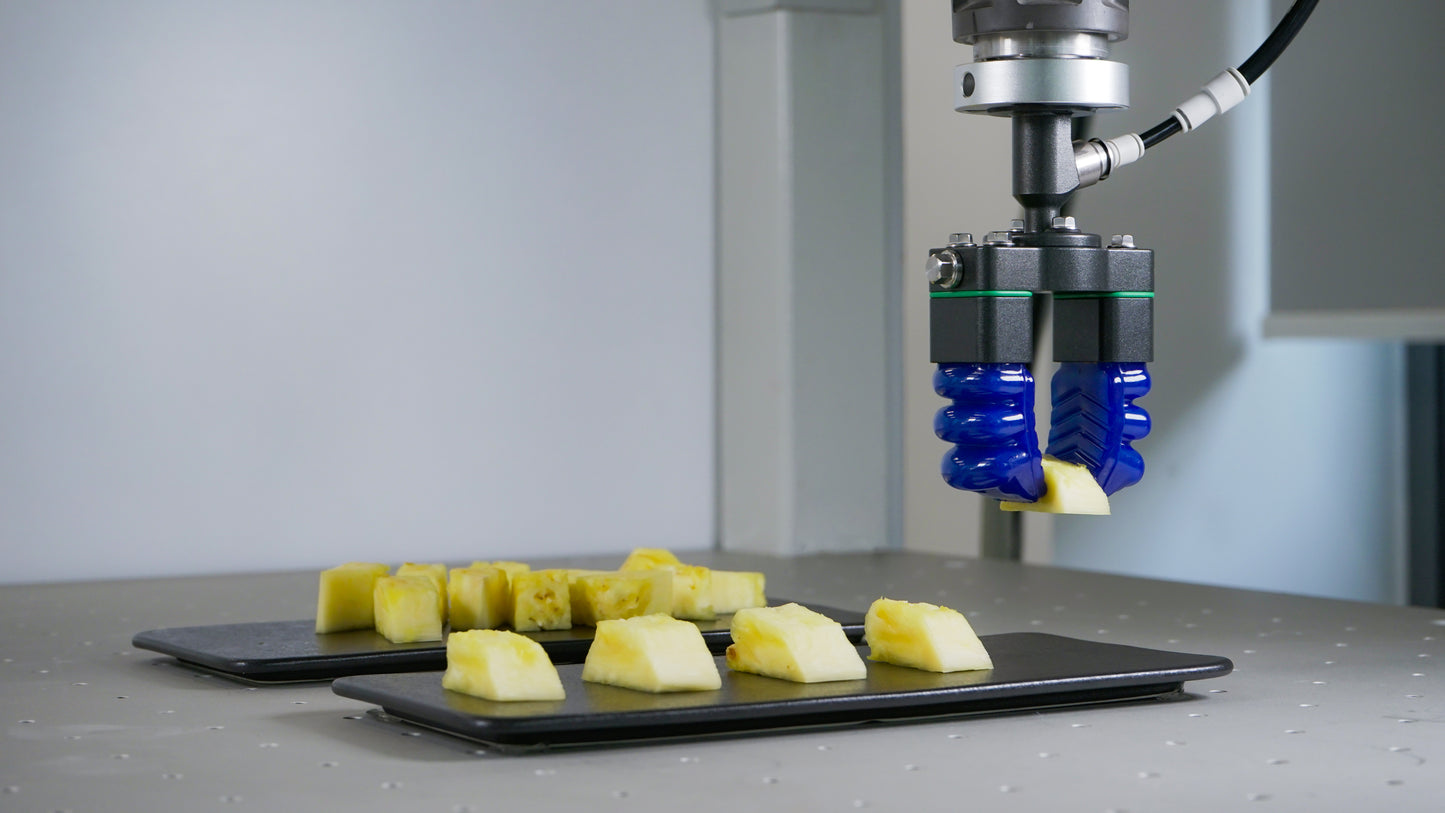

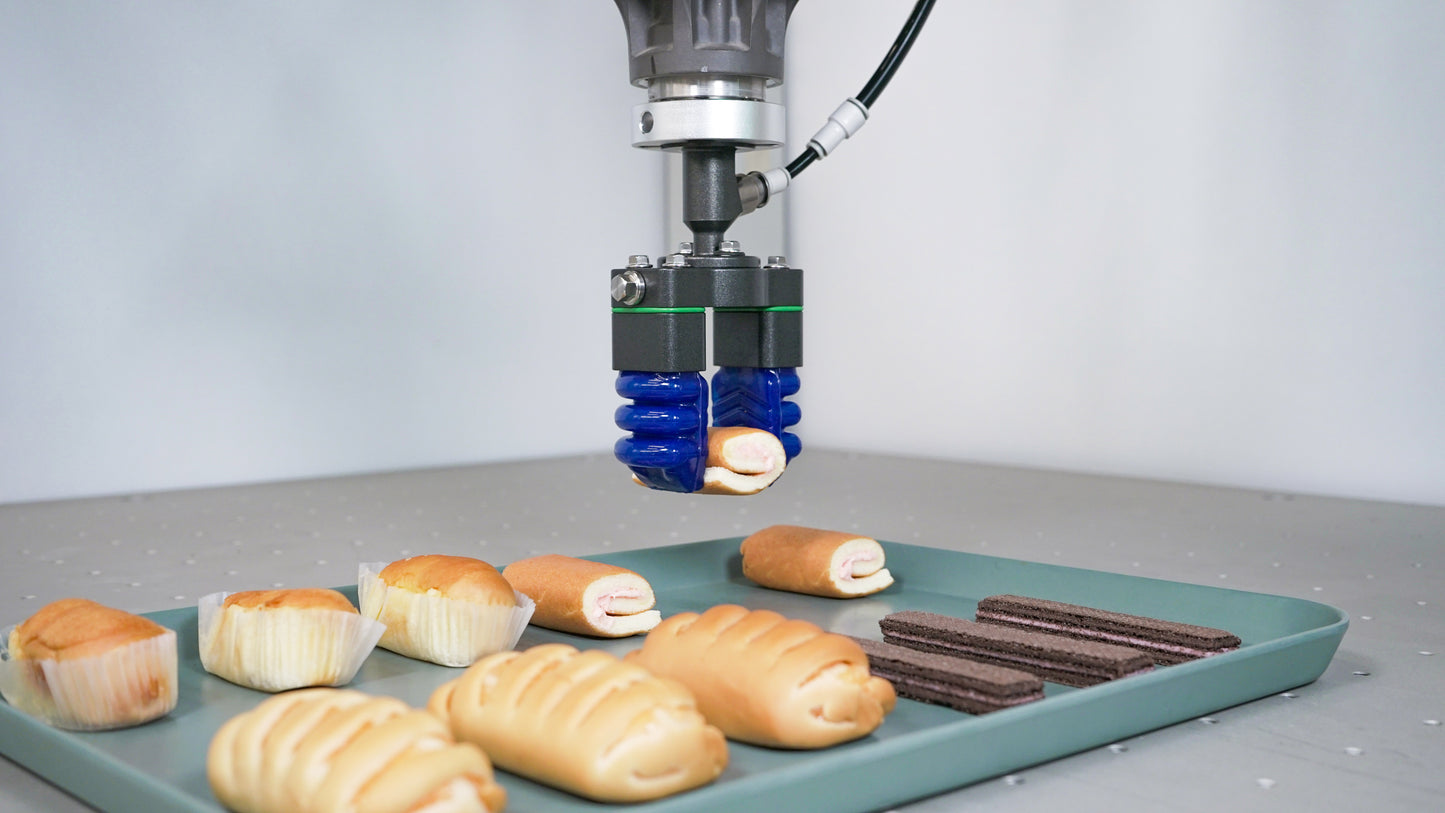

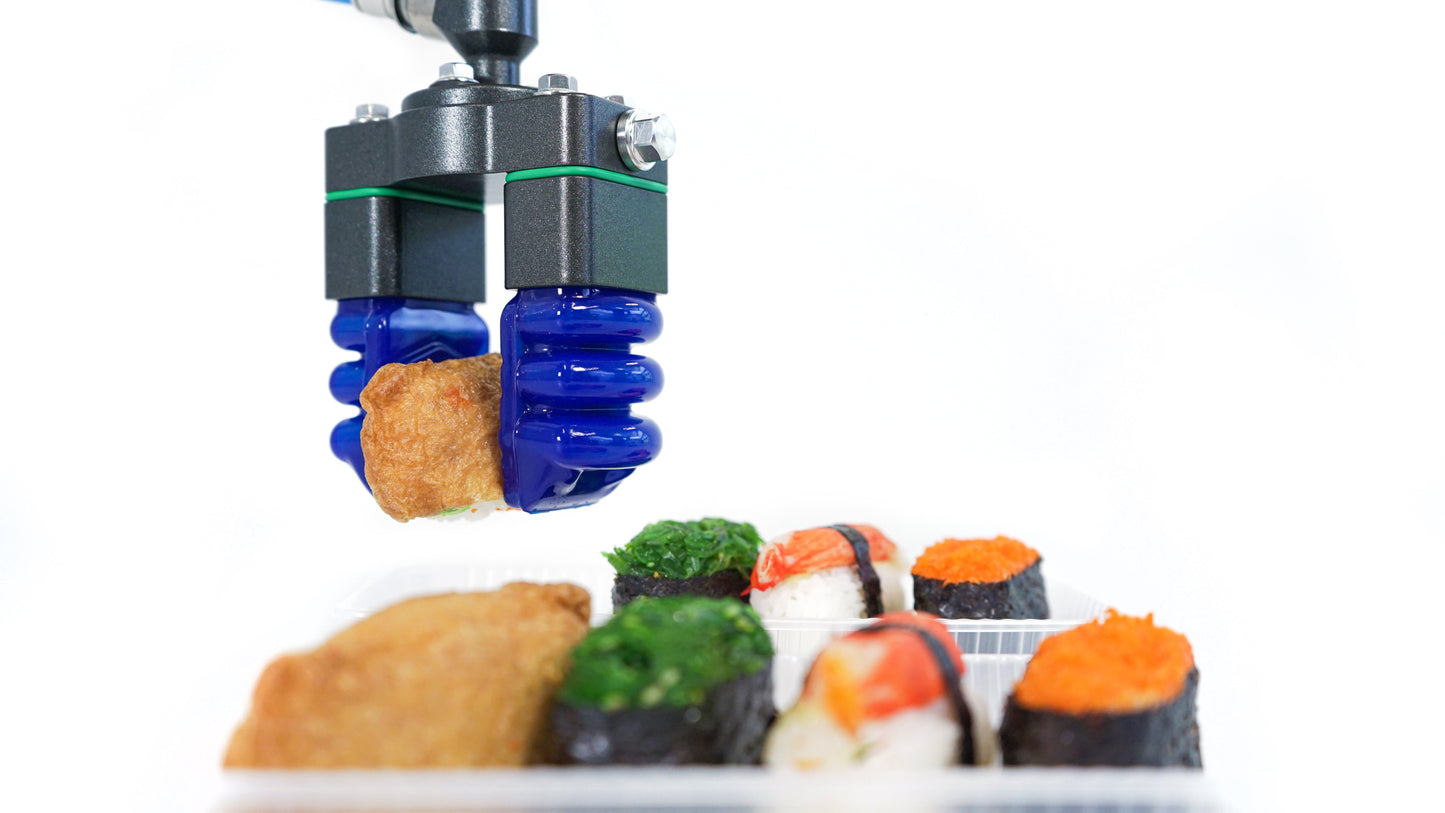

Application Video
