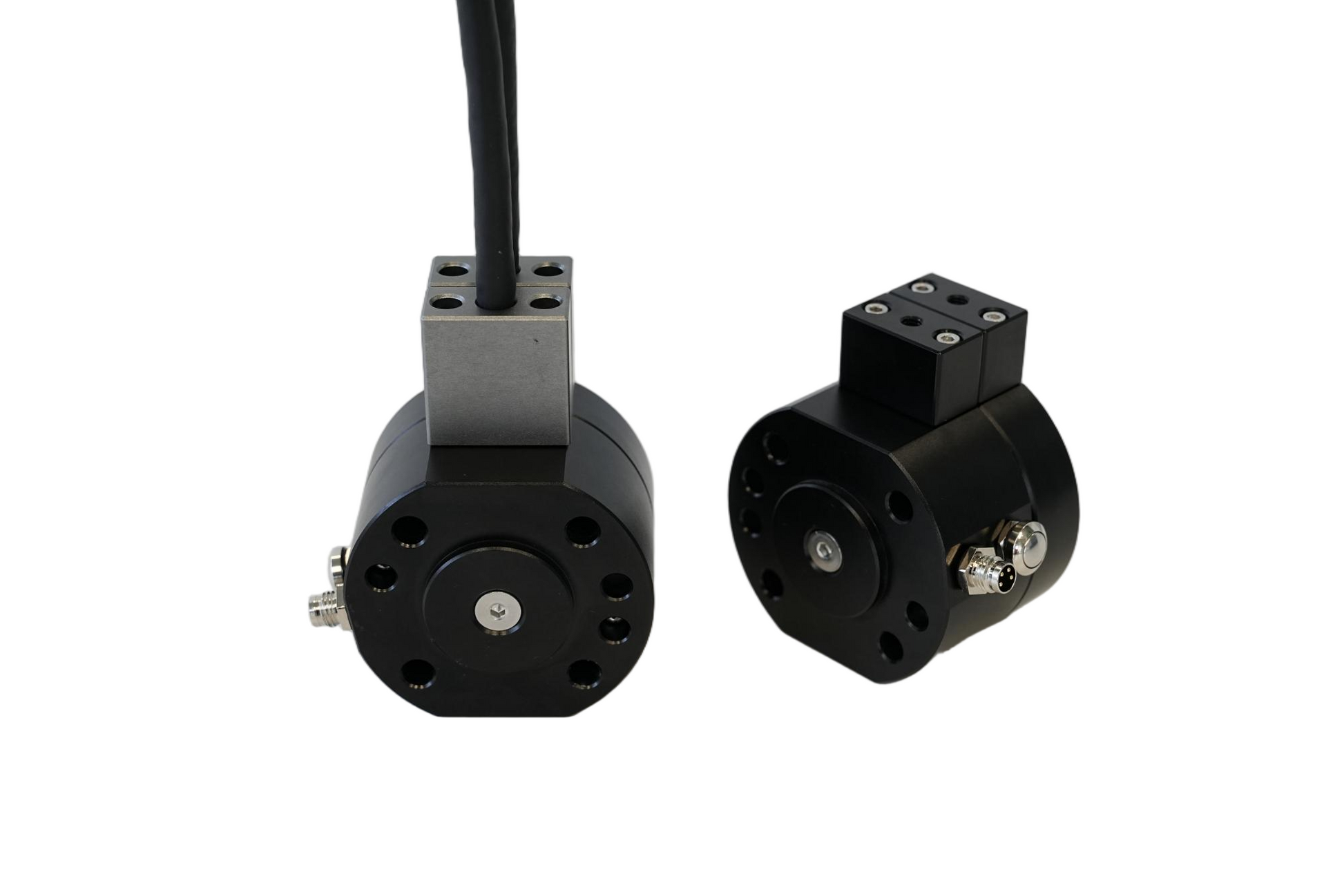

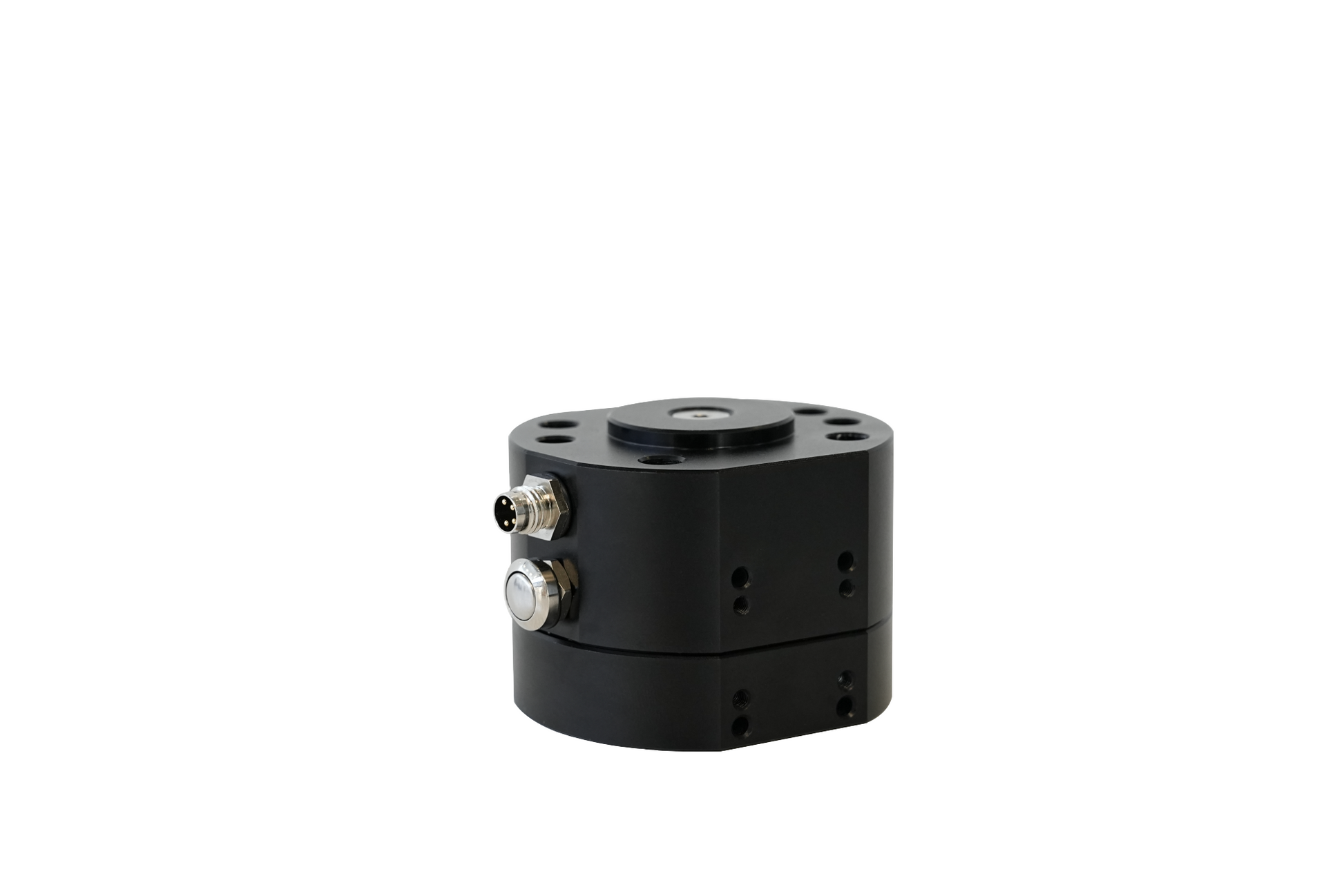

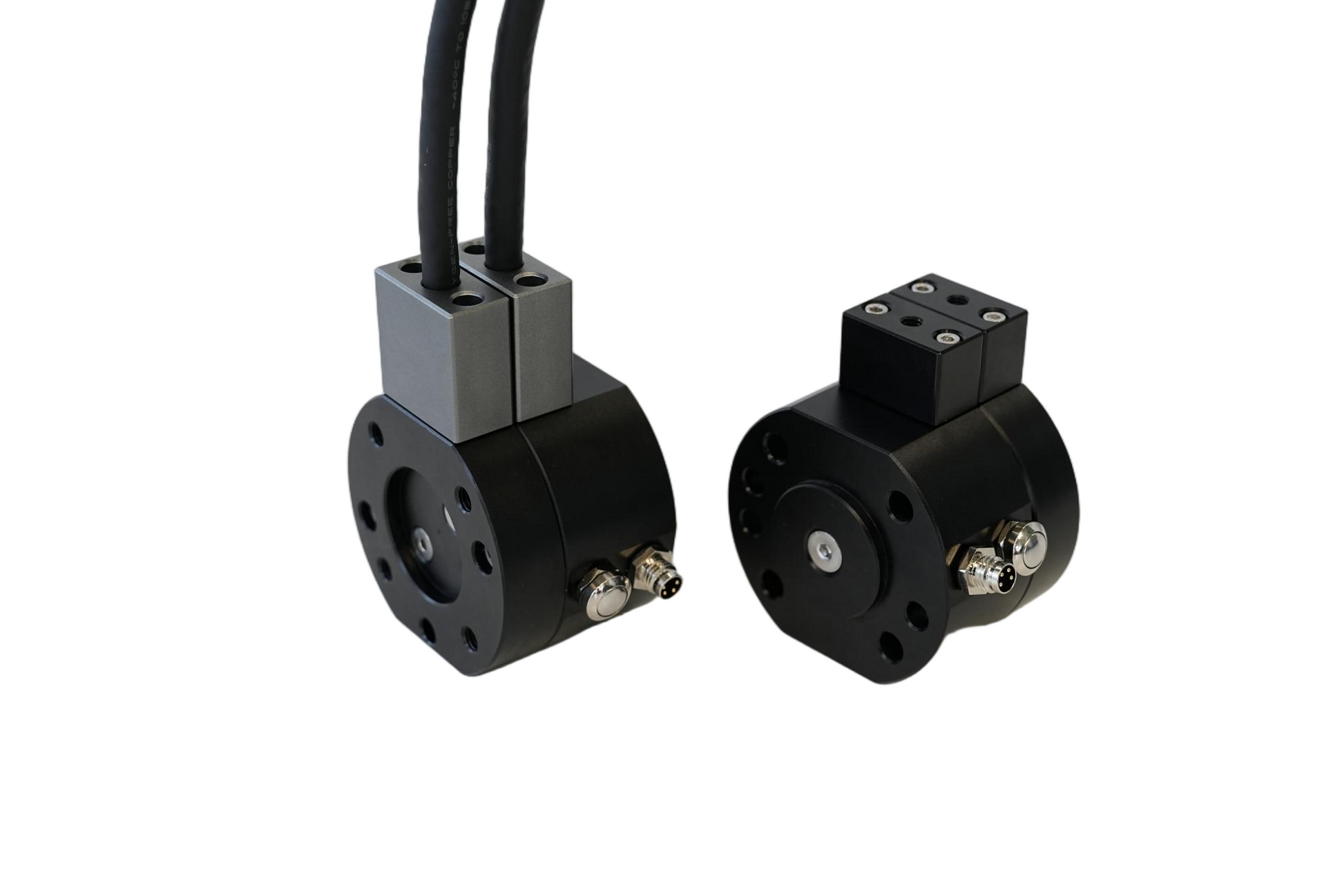

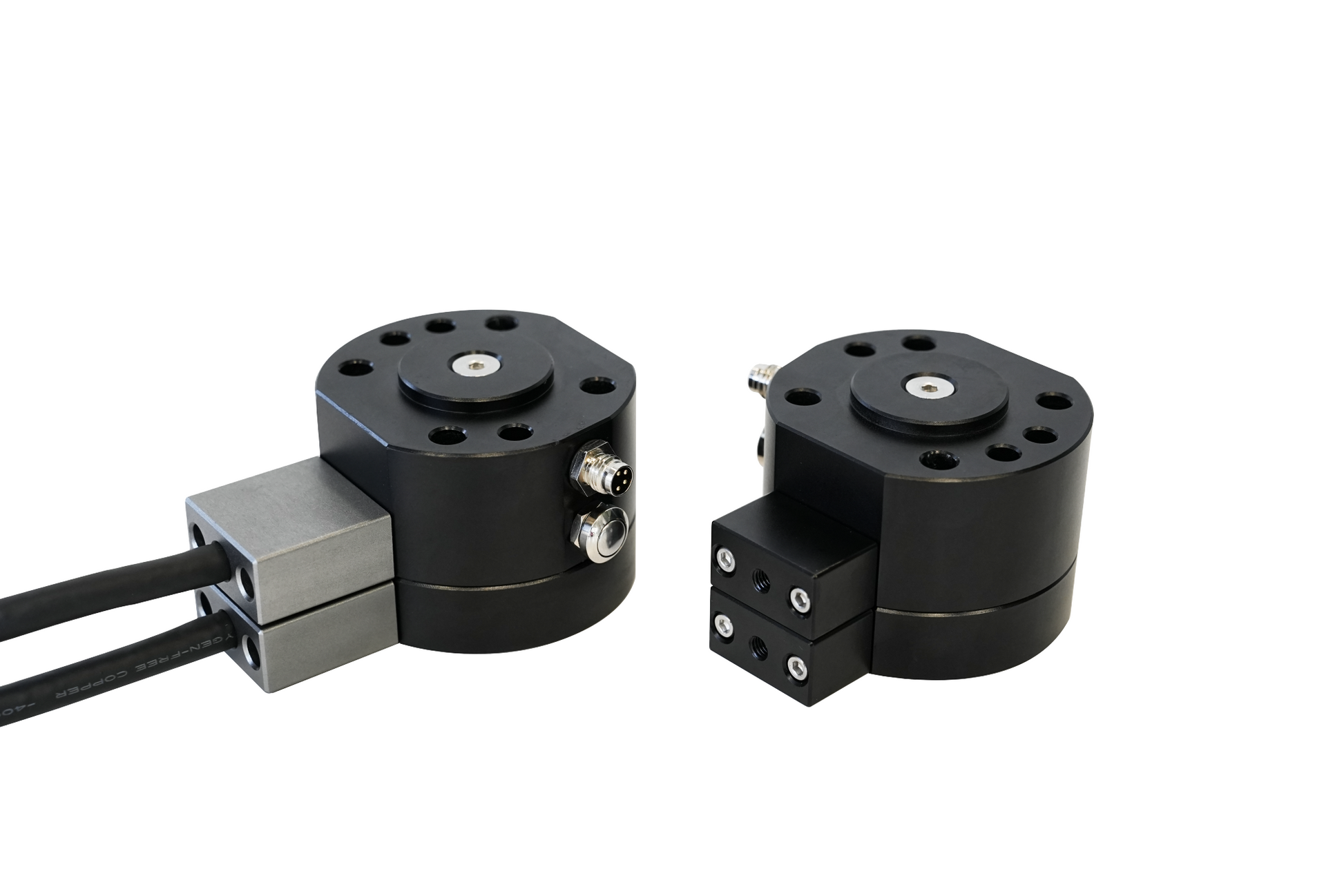

Electromagnetic Quick Change-ATC EC05

In scenarios with more mobile platforms, in vacuum environments, and requirements such as energy conservation and emission reduction, pneumatic quick-change devices can no longer meet the needs. The driving mechanism is a power-off type electromagnet. When no current is applied, it exhibits permanent magnet characteristics. When current is applied, the excitation magnetic field cancels out the permanent magnet magnetic field, and no magnetism is generated externally.
Get a Quote

Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection

Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection

  • Locking Force 200N
  • Rated Load 5kg
  • Reciprocating Positioning Accuracy ±0.01mm
  • Driving Voltage 24V
  • Driving Current >1A
  • Maximum Allowable Torque 1.2Nm

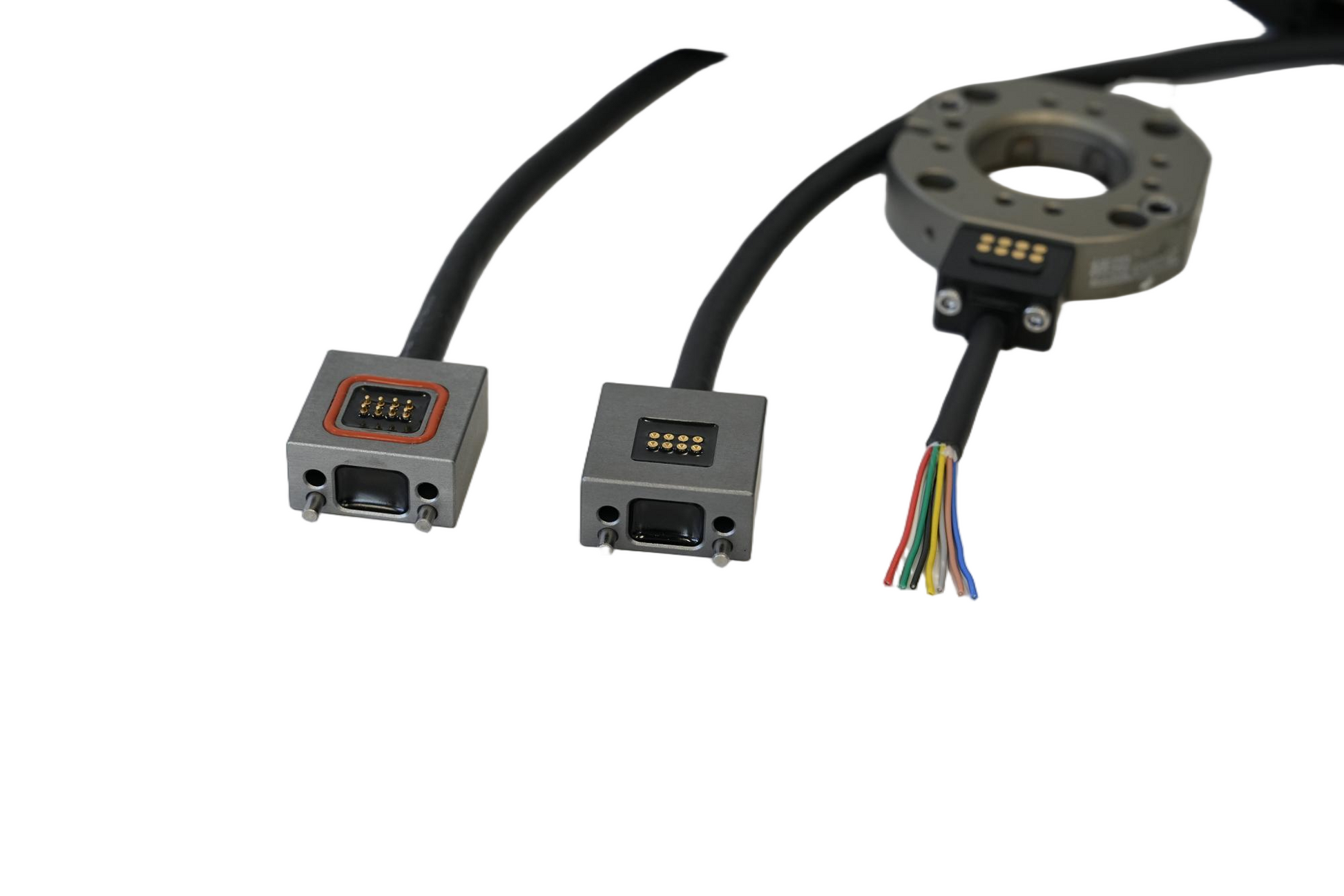

  • Electrical Module DC24V/2A/8-pin
  • Air Circuit Module 100kPa / 1 circuit
  • Cleanliness Ordinary clean environment
  • Temperature -30-55°C
  • Humidity No condensation
  • Protection Level IP55
  • Others No strong magnetic interference

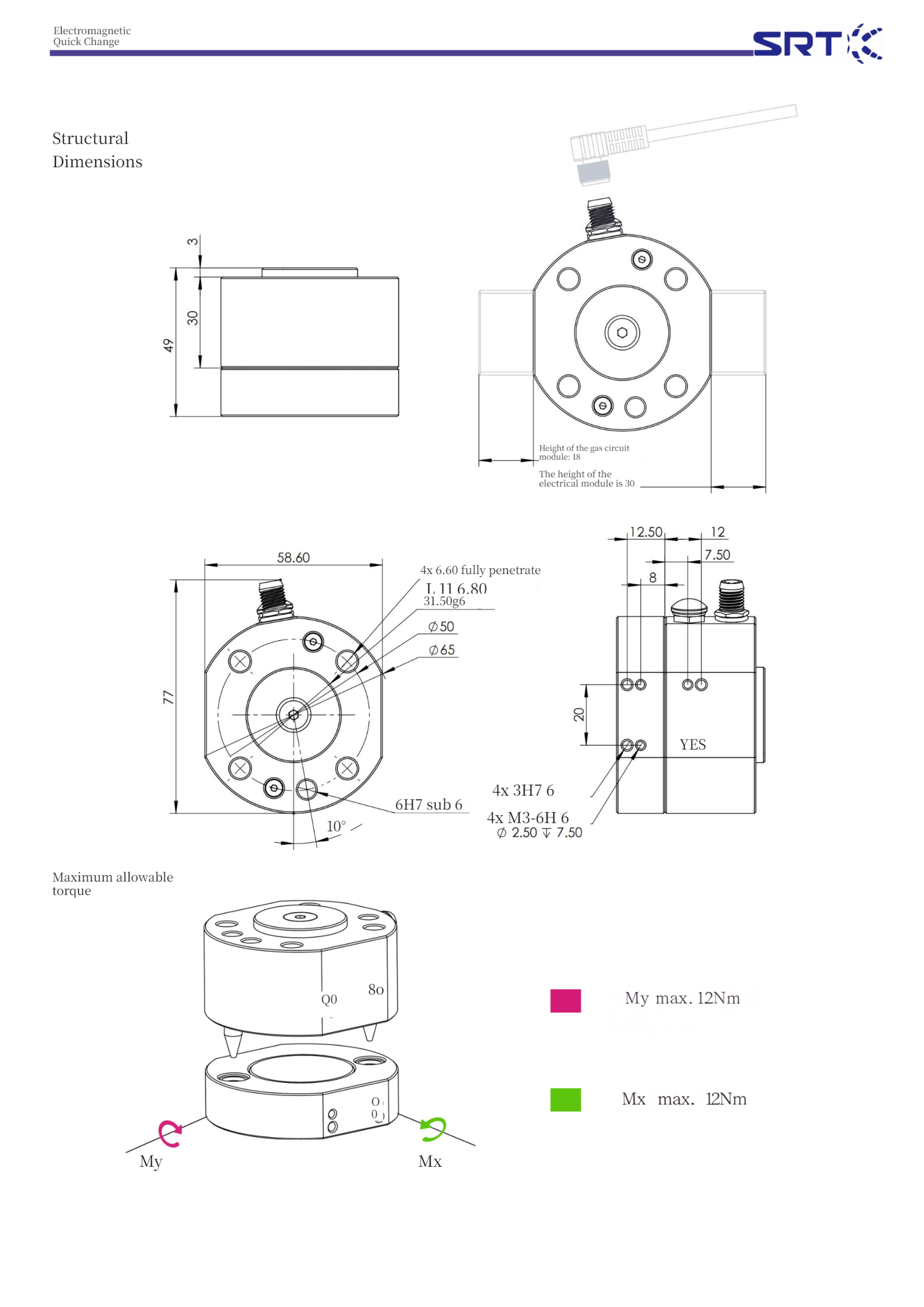

A picture of SRT ATC-EC05_Geometry
ATC EC05 Intrduction
