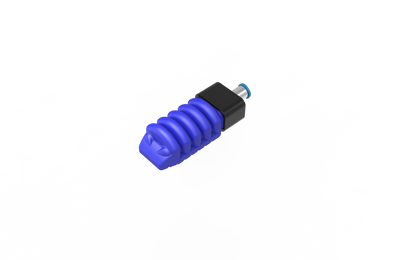

N3052
The soft finger module is the core component of the SFG flexible gripper. The executive part is made of food-grade silicone rubber, safe, reliable, and flexible. The N30 series is suitable for gripping small objects. N3052, the first two digits 30 are the width of the finger, and the following digits 52 are the length of the finger. Unit: mm
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
-
Product Weight(g) 52
-
Fingertip Thrust/N 4.6
-
Load Coefficient of Individual Finger/g Vertical: 150/ Pack: 300
-
Working Speed/cpm <110
-
Product Life >300W
-
Working Pressure -60～100kPa
-
Connection Diameter 4mm
