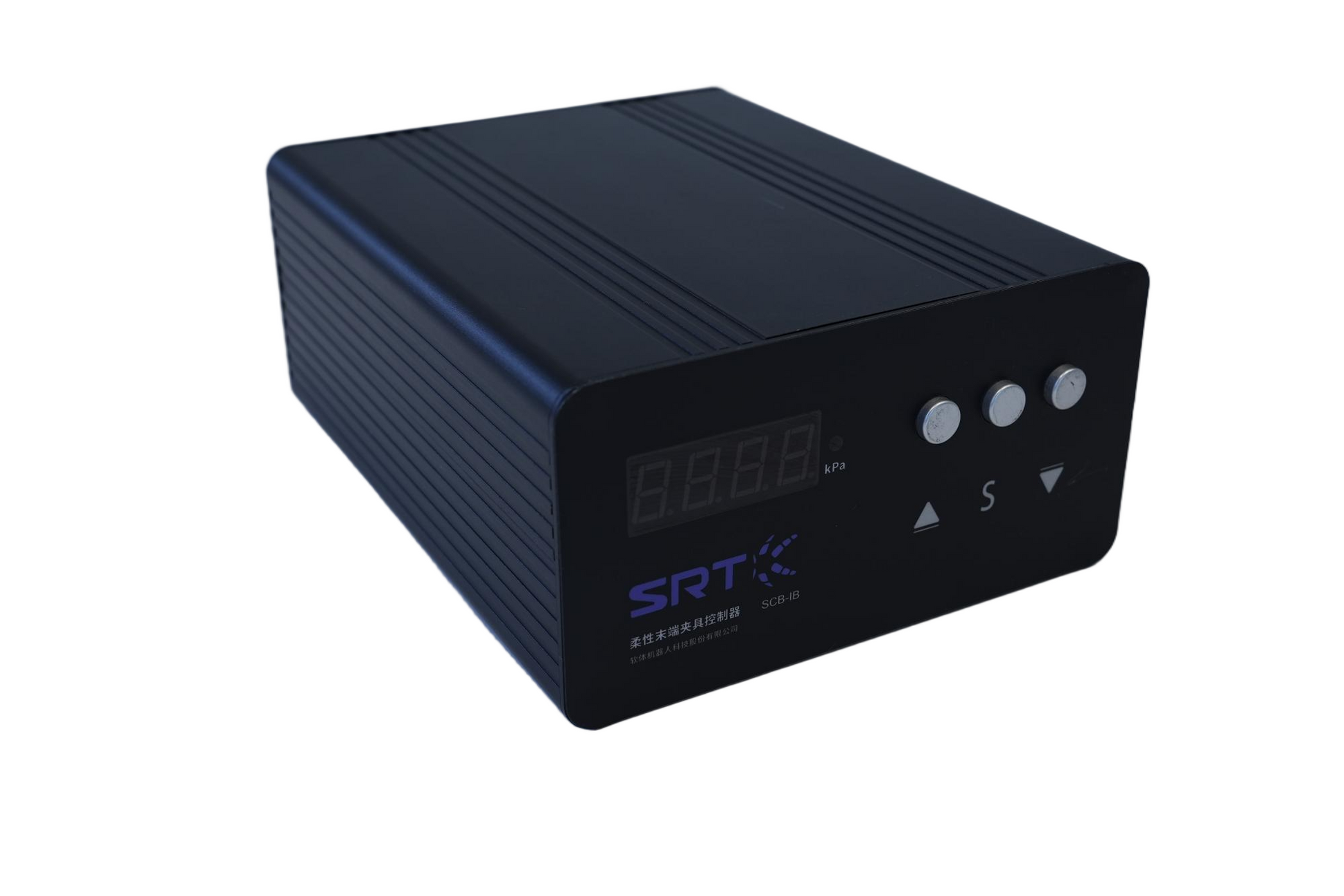

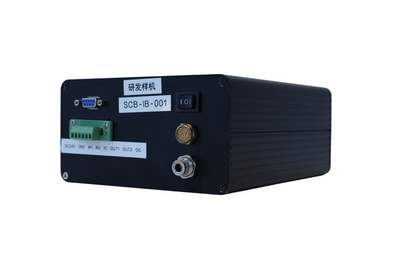

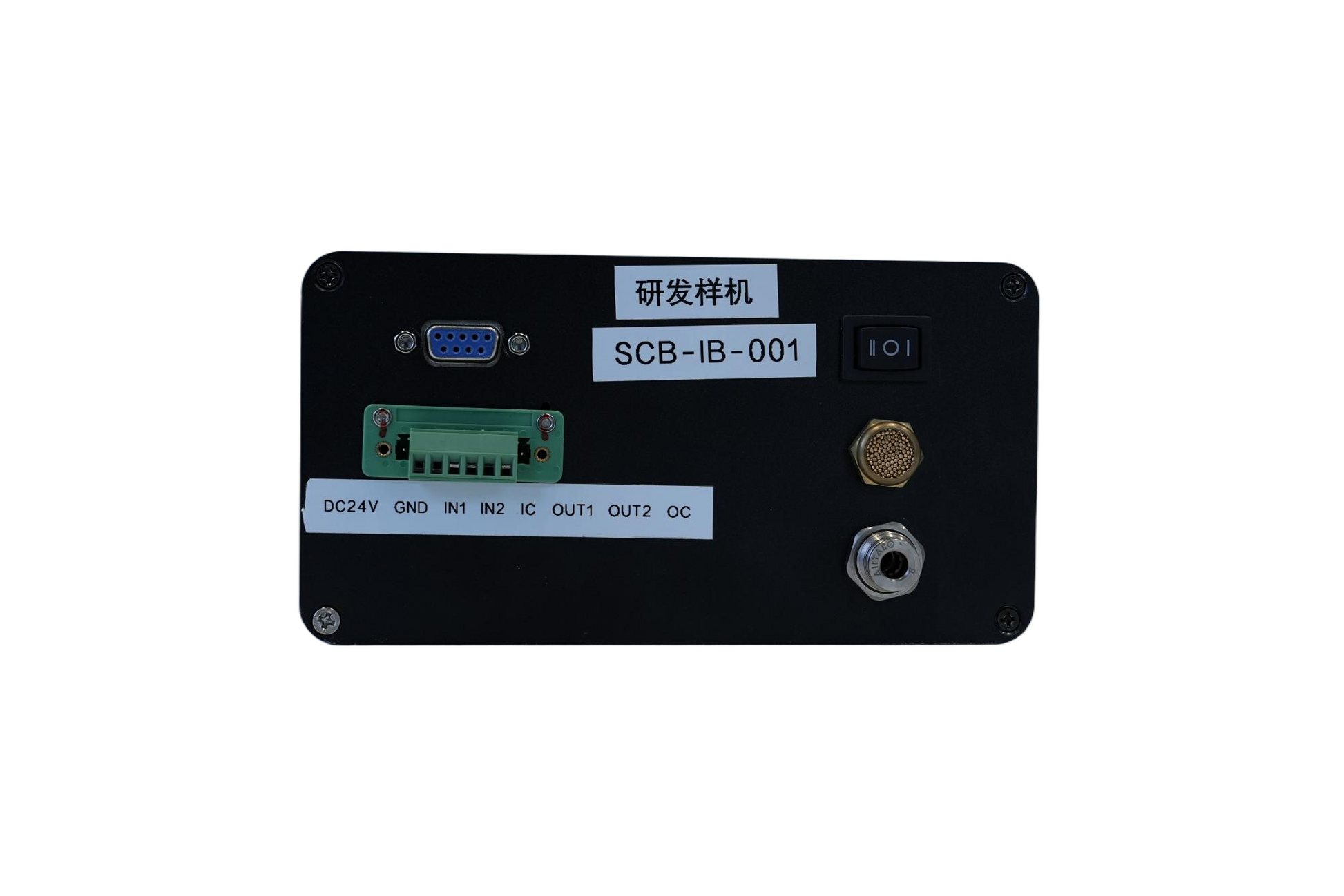

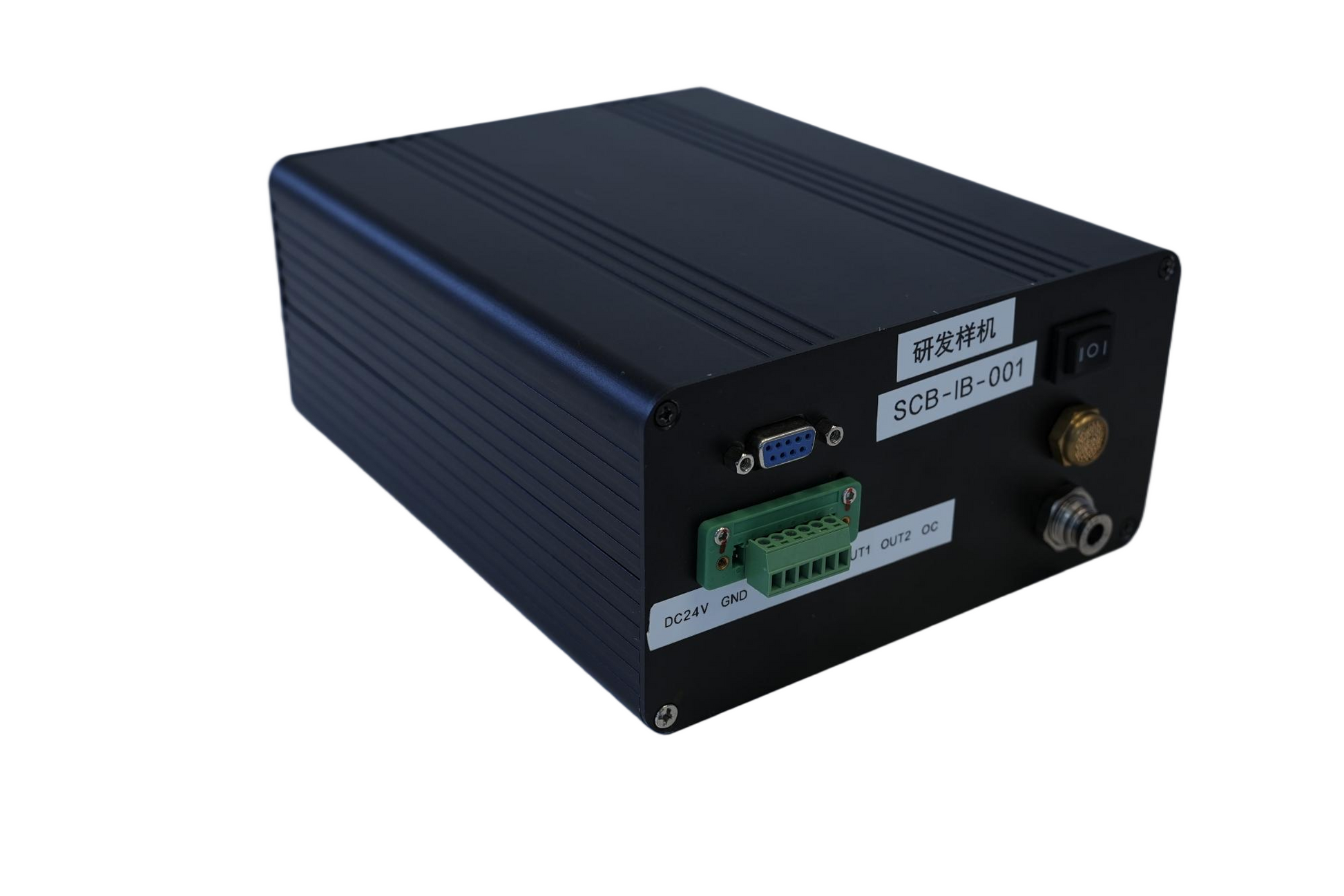

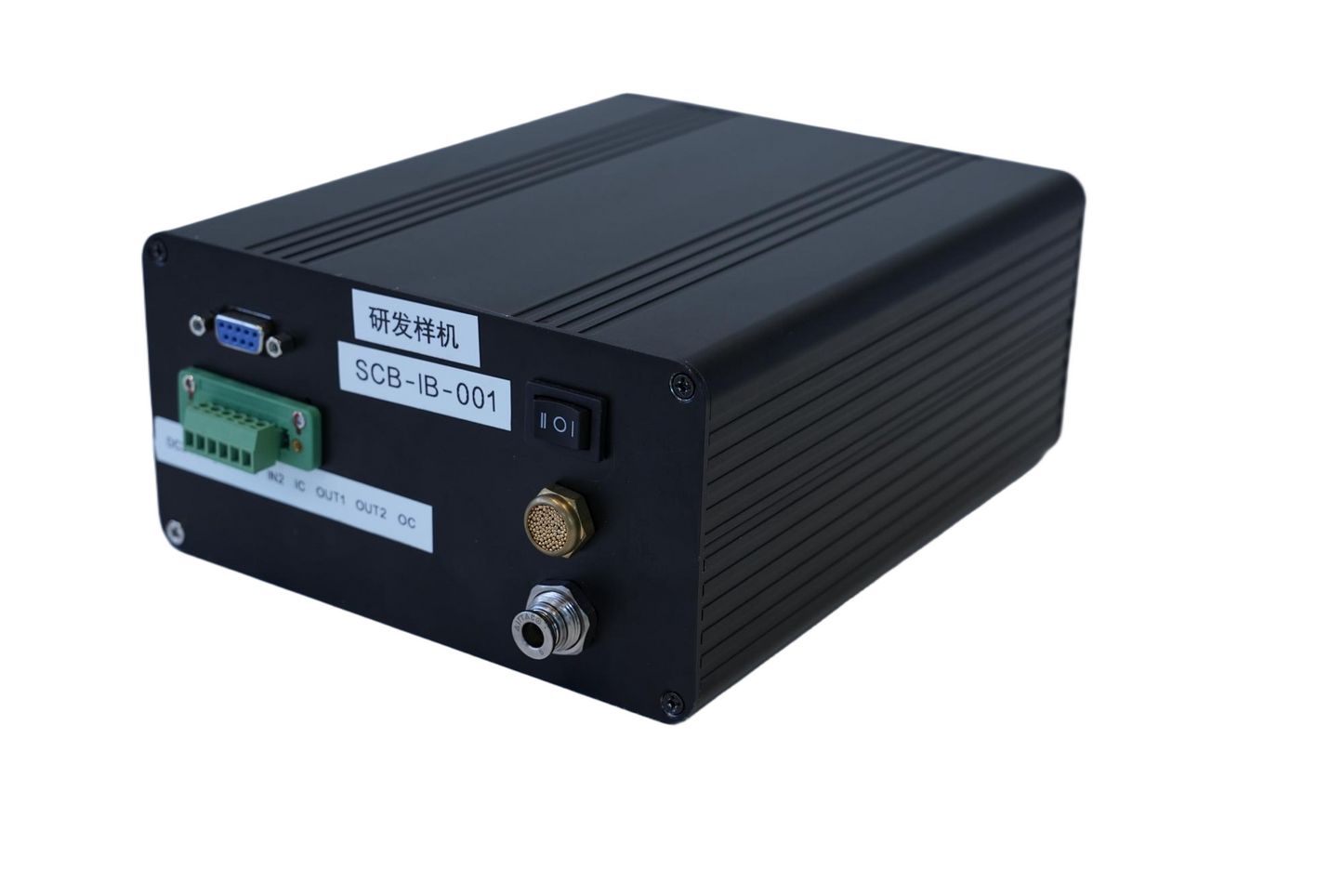

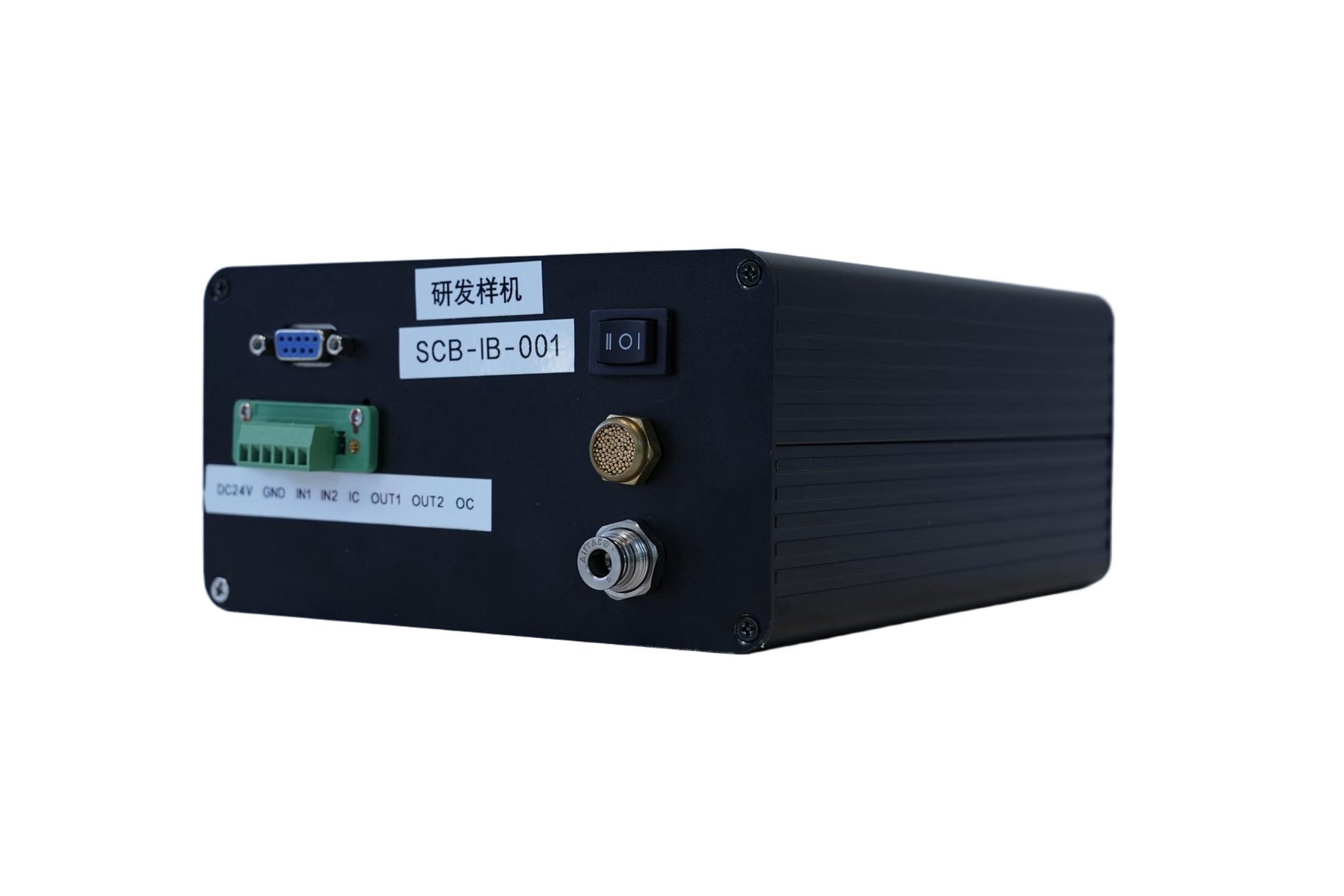

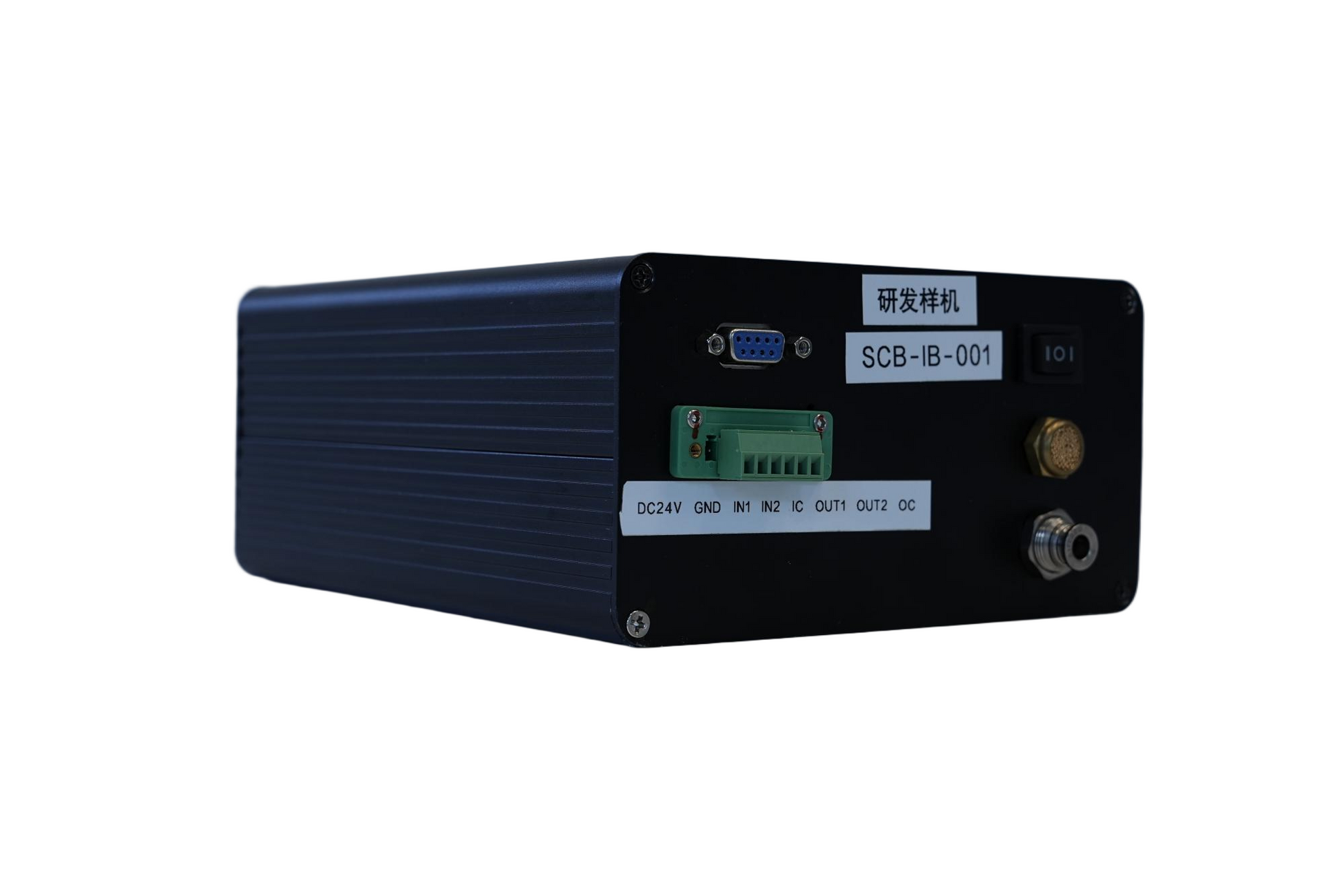

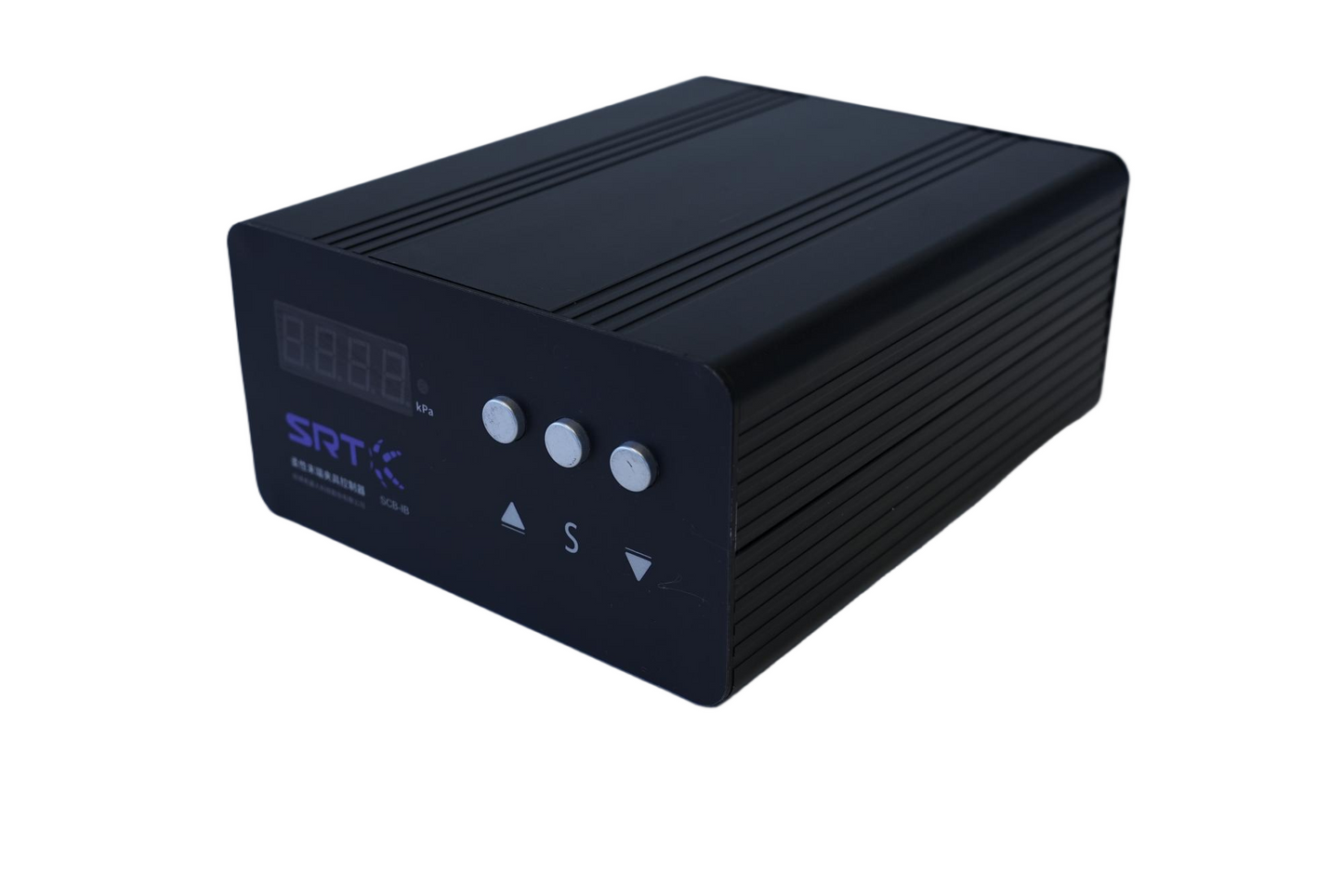

SCB-IB
SCB pneumatic control module, as a special control module for soft clamps, can output the safe gas pressure that soft clamps can tolerate, which can not be filled by the conventional industrial gas source. The gas pressure inside the grippers can be adjusted through the control module to realize the precise control of the gripping of the soft clamps.
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
Certifications
EU CE Certificate
EU ROHS Certificate
EU AP Inspection
Germany LFGB Inspection
U.S. FDA Inspection
Japan JFSL370 Inspection
-

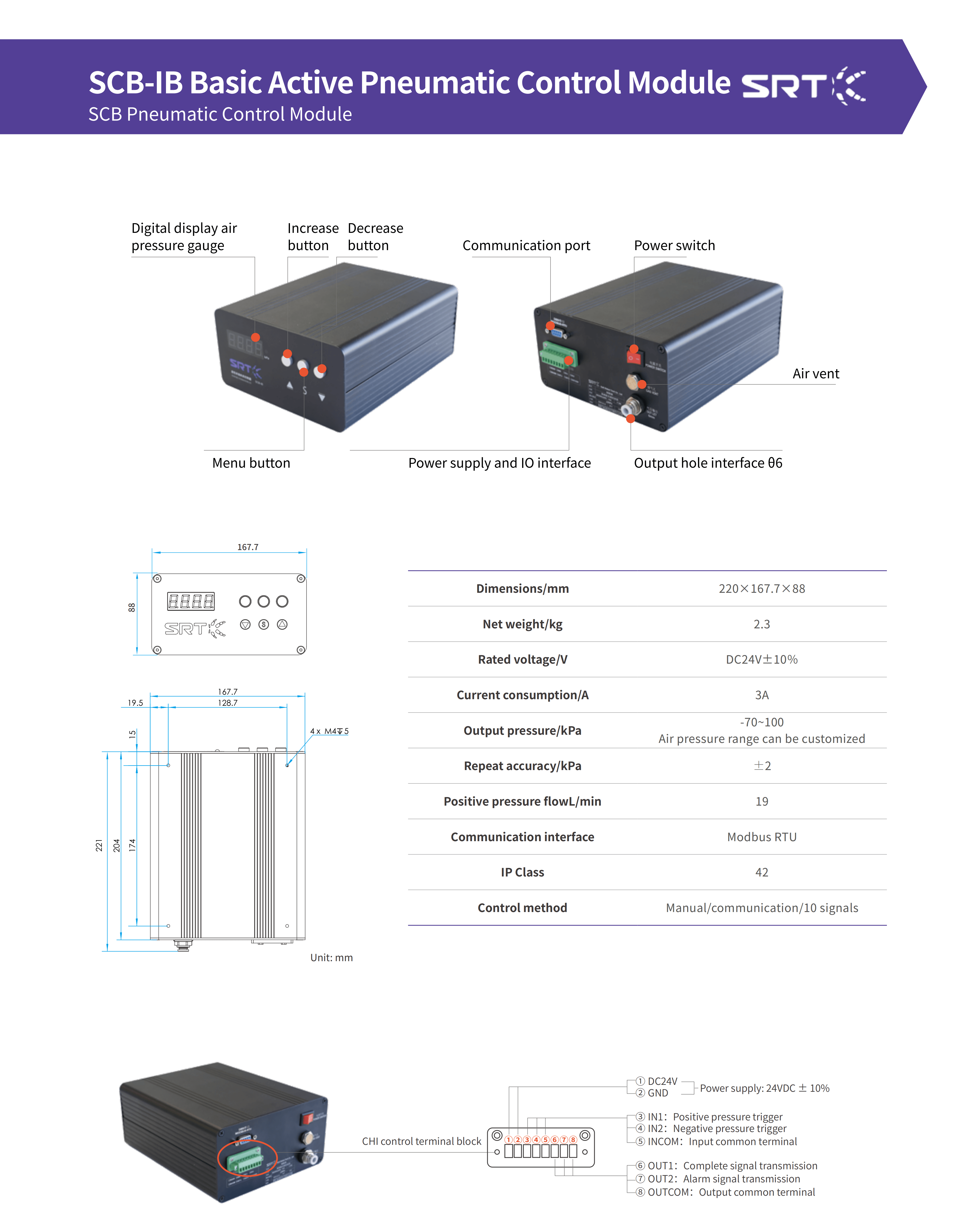

Positive Pressure -70~100 air pressure (range can be customized)
-
Positive Pressure Flow L/min 19
-
Negative Pressure Flow L/min 19
-
Repeat Accuracy/kPa ±2
-
Voltage Regulation Mode Manual pressure regulation, communication pressure regulation
-
Special Functions Compatible with flexible clamps and vacuum chucks
-
Weight/kg 2.3
-
Volume(L×W× H)/mm 220×167.7×88
-
IP Class 42
