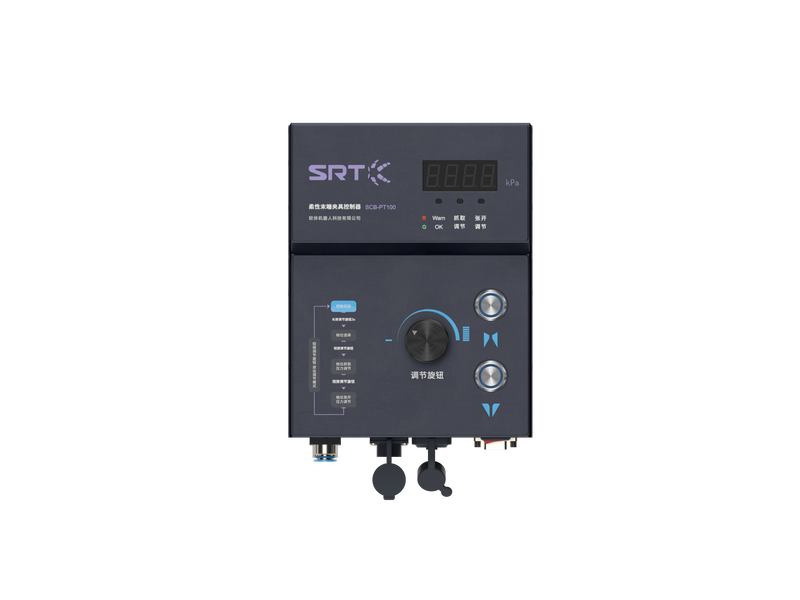

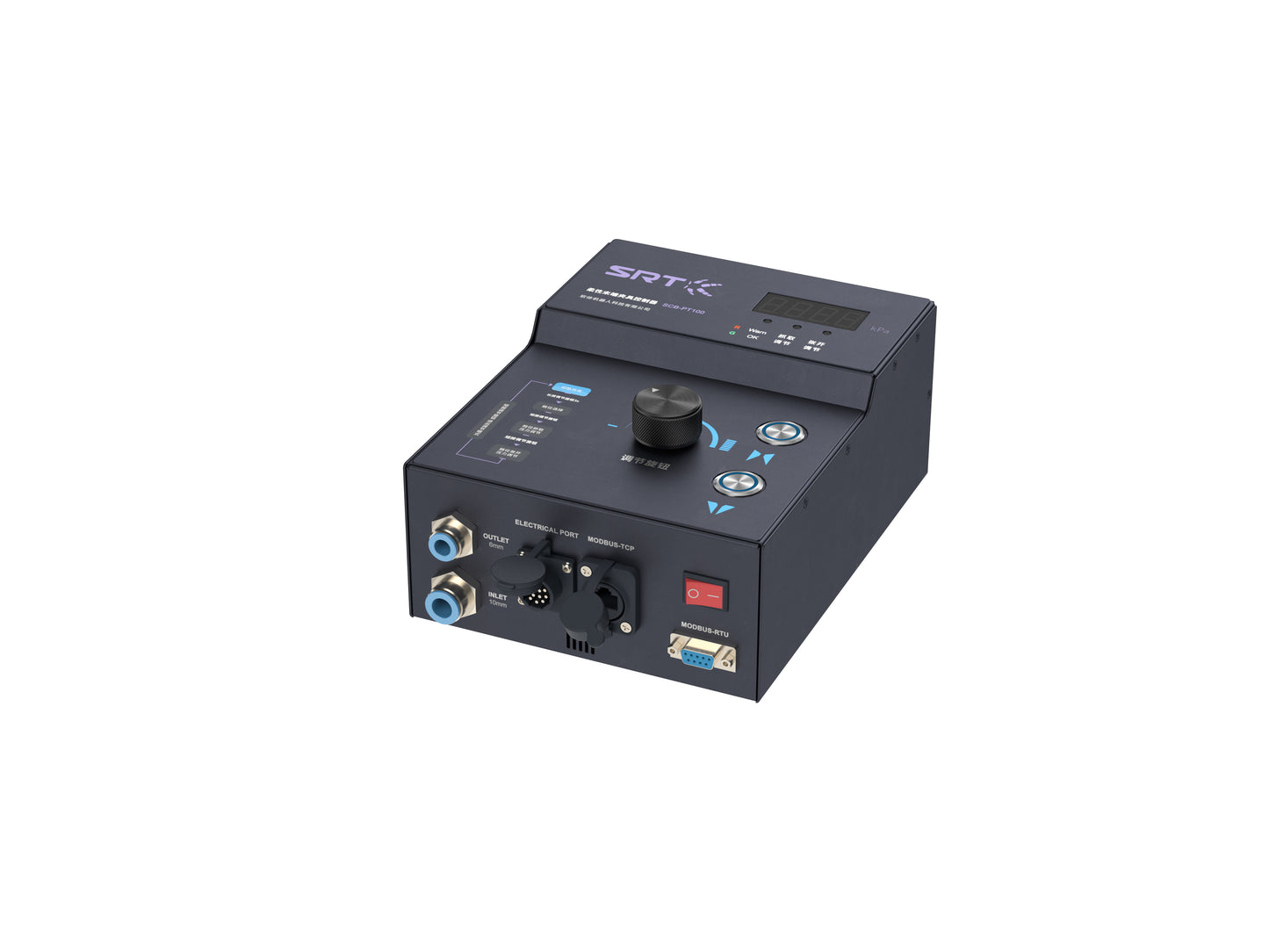

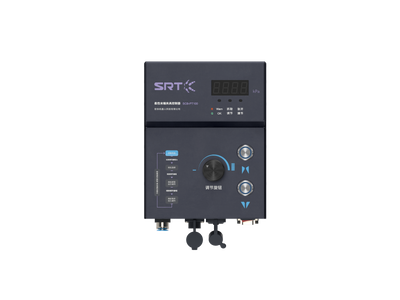

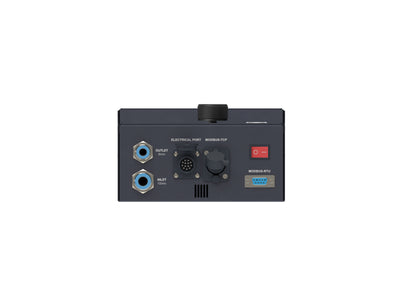

SCB-PT
SCB pneumatic control module, as a special control module for soft clamps, can output the safe gas pressure that soft clamps can tolerate, which can not be filled by the conventional industrial gas source. The gas pressure inside the grippers can be adjusted through the control module to realize the precise control of the gripping of the soft clamps.
Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection
Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection
-
Positive Pressure -80~100
-
Positive Pressure Flow L/min 285
-
Negative Pressure Flow L/min 85
-
Repeat Accuracy/kPa ±4
-
Voltage Regulation Mode Air leak detection, signal output, alarm signal output, overpressure protection, support multiple communication protocols
-
Special Functions Air leak detection,signal output, alarmsignal output,over pressure protection
-
Weight/kg 3
-
Volume(L×W× H)/mm 222×172×96
-
IP Class 42
