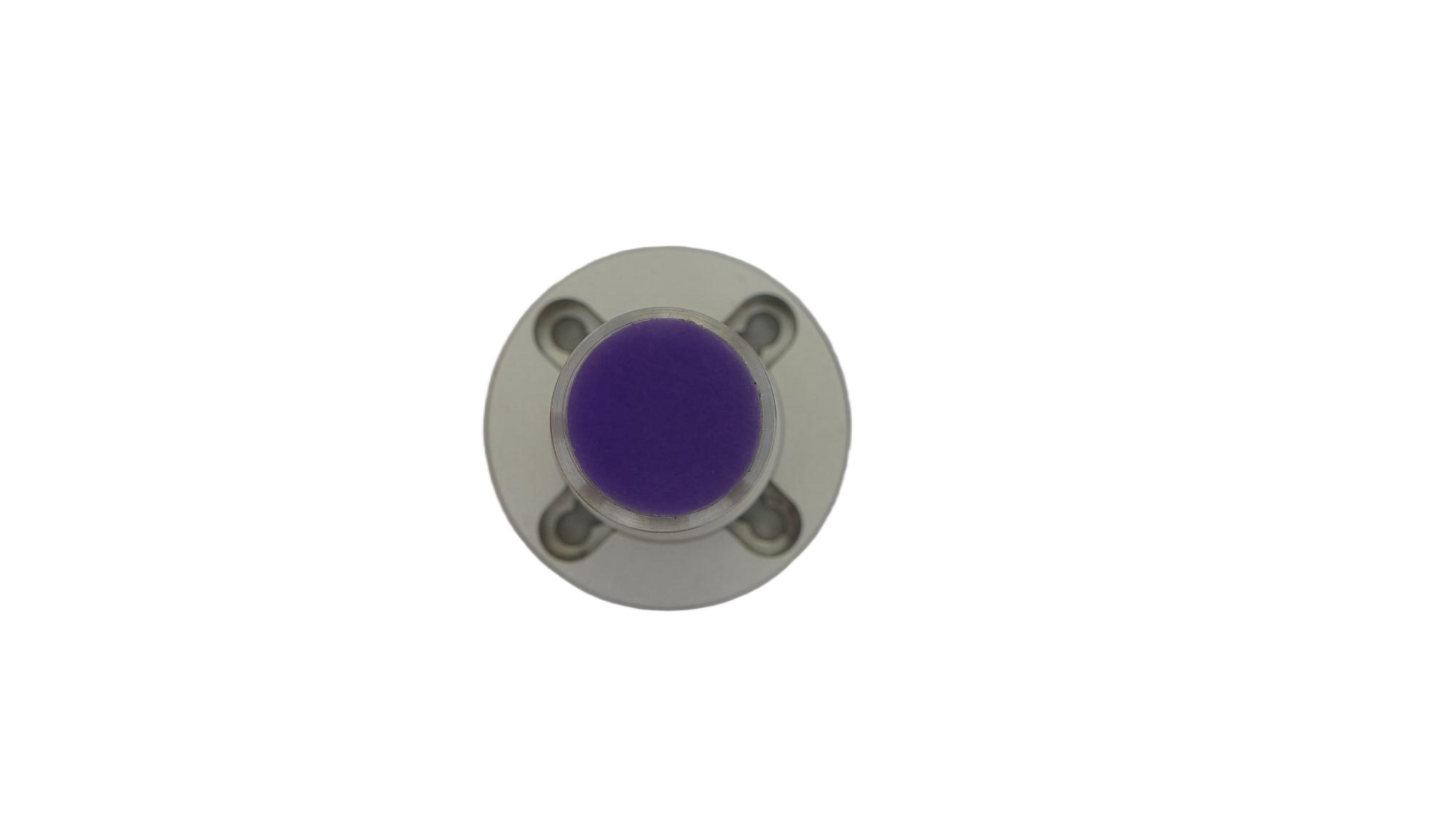

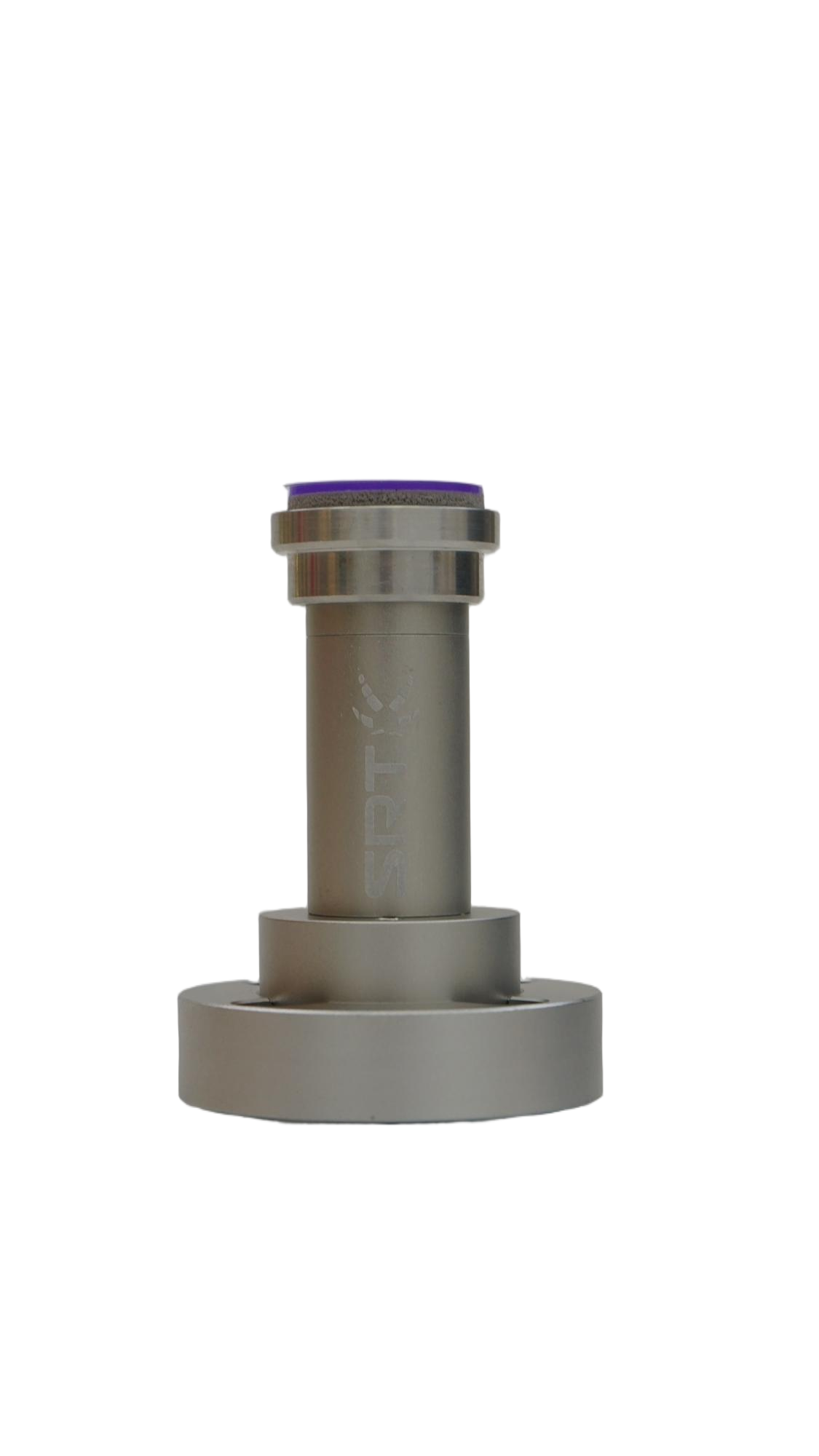

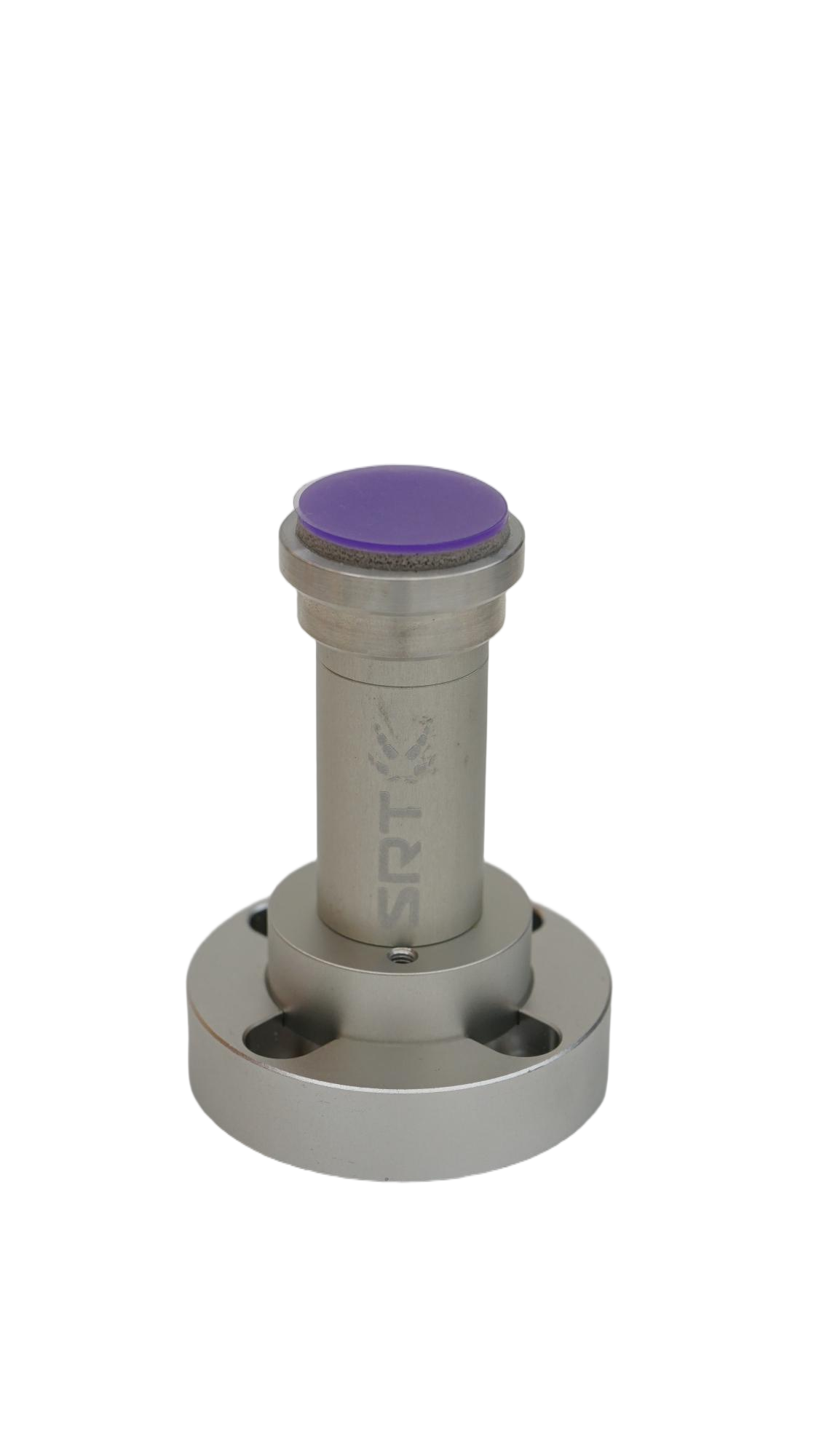

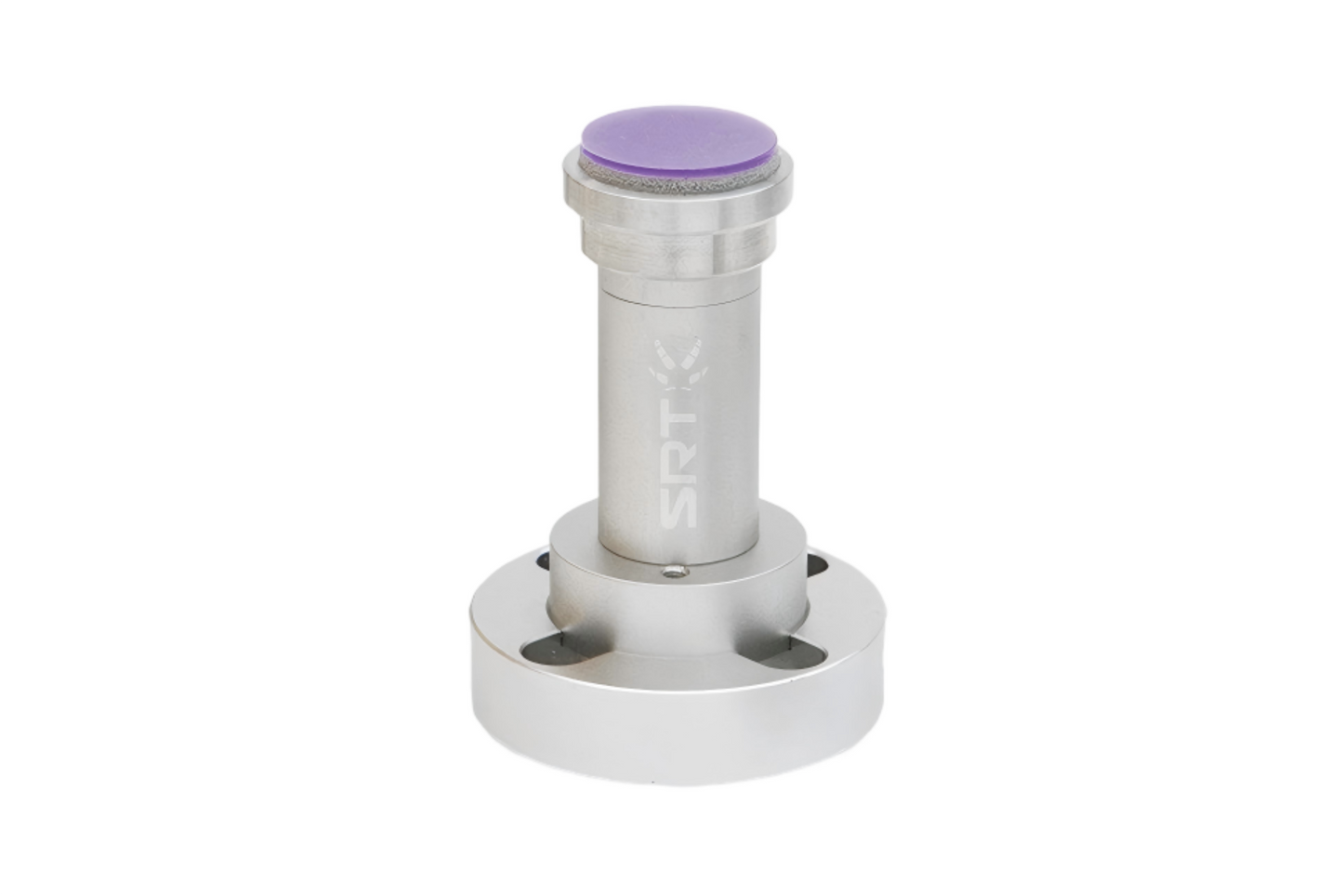

VFC-D30

VFC Van Der Waals force suction cups are inspired by the observation and imitation of the microscopic characteristics of gecko feet. Through special polymer materials and μm-level surface micro-molding processes, the suction cups can generate strong intermolecular forces with the surface of various objects to absorb. The strength can reach 0.5kg/cm². Thanks to its special adsorption mechanism, it does not require a power supply, a gas supply, or programming. It is simple and reliable, and can absorb porous workpieces, and can work normally even in a vacuum environment. In addition, there are no residues and marks on the surface of the workpiece, which greatly expands the application scope of automatic equipment.
Get a Quote

Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection

Certifications

EU CE Certificate

EU ROHS Certificate

EU AP Inspection

Germany LFGB Inspection

U.S. FDA Inspection

Japan JFSL370 Inspection

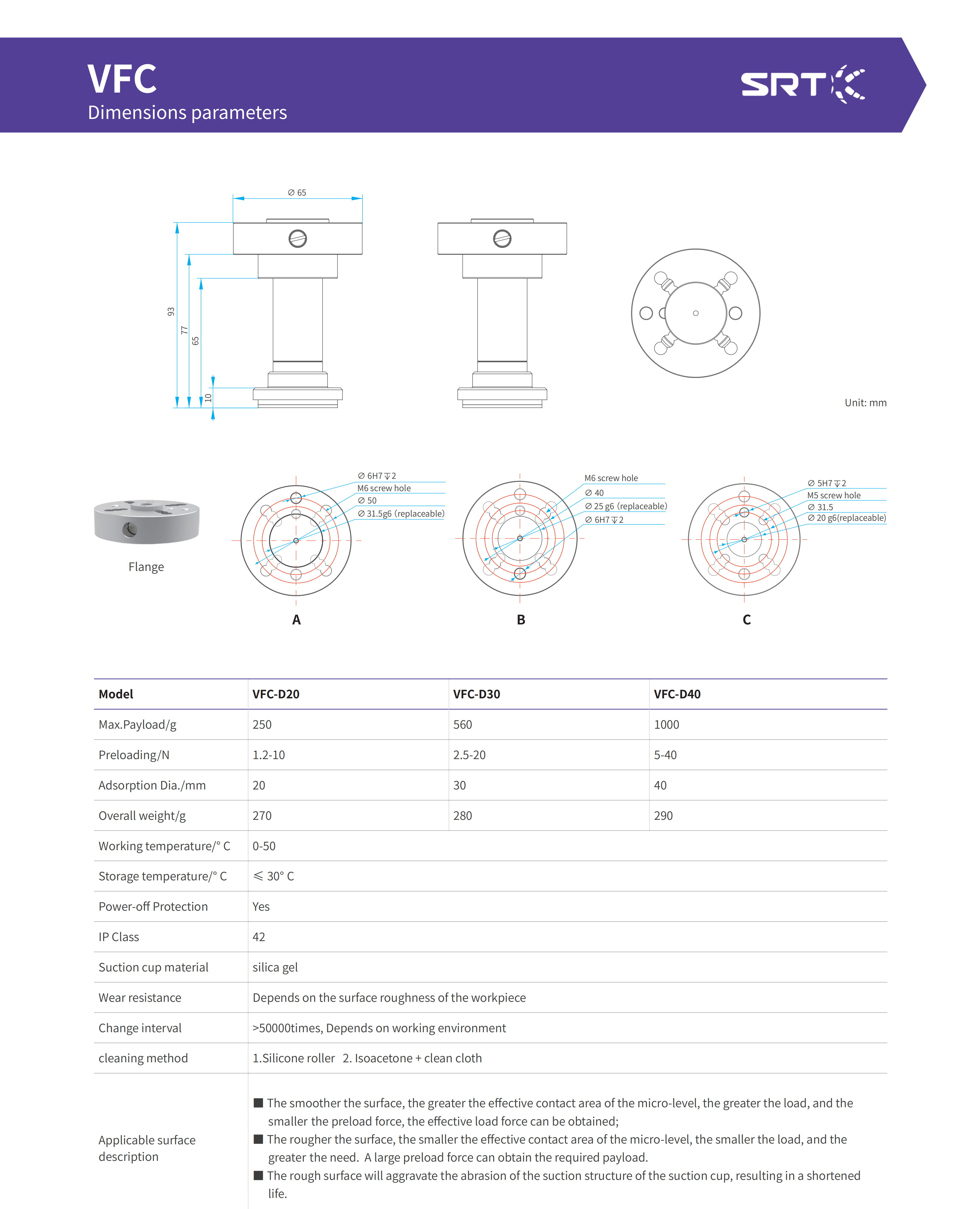

  • Max.Payload/g 560
  • Preloading/N 2.5-20
  • Adsorption Dia./mm 30
  • Overall Weight/g 280
  • Working Temperature/° C 0-50
  • Storage Temperature/° C ≤ 30° C
  • Power-off Protection Yes
  • IP Class 42
3D CAD Model
VFC User Manual
Operation Instruction
SRT Soft Gripper Selection Guide
